Name: 2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Μίνι αυτόματη γραμμή κοπής
Price: 26,500.00 USD
Availability: InStock

Σπίτι > προϊόντα > περικοπή στο μήκος και τη σχισμή της γραμμής >

2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

hydraulic slitter slitting line machine

high speed slitting line with uncoiler

slitting line machine with recoiler

Τόπος καταγωγής:

ηπειρωτική Κίνα

Μάρκα:

FAMOUSE

Πιστοποίηση:

ISO, CE

Αριθμό μοντέλου:

Μίνι αυτόματη γραμμή κοπής

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Πληροφορίες για το προϊόν

Όνομα προϊόντος:

Απλή γραμμή κοπής μικρού σχιστήρα υψηλής ταχύτητας με υδραυλικό ξετυλίκτη και επανατυλίκτη

Υλικό κοπής:

Galvalume, που γαλβανίζεται, PPGI, αργίλιο

Πάχος υλικού:

0.3 mm -3 mm

Ταχύτητα εργασίας:

8 m/min - 30 m/min (μπορεί να προσαρμοστεί)

Βάρος πηνίου:

5 τόνους / 7 τόνους / 10 τόνους (μπορεί να προσαρμοστεί)

Σχισμή των PC:

2 - 30 τεμάχια

Βάρος μηχανής:

13000 κλ

Ακρίβεια τέμνοντος πλάτους:

± 0,01 - ± 0,05 χιλ.

Επισημαίνω:

hydraulic slitter slitting line machine

high speed slitting line with uncoiler

slitting line machine with recoiler

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 καθορισμένη γραμμή παραγωγής

Τιμή

negotiable

Συσκευασία λεπτομέρειες

2 PC 40 " FLC

Χρόνος παράδοσης

60 εργάσιμες ημέρες

Όροι πληρωμής

L/c, d/a, d/p, t/t

Δυνατότητα προσφοράς

5 σύνολα ανά 60 ημέρες

Συγγενικά προϊόντα

Βίντεο

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Βρείτε την καλύτερη τιμή

Βίντεο

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Βρείτε την καλύτερη τιμή

Χάλυβα μεταλλικό βαρύ πάχος πηνίο ισοπέδωση 1,5mm 1200mm ppgi κομμένο σε μήκος

Βρείτε την καλύτερη τιμή

Βίντεο

Μηχανή γραμμής κοπής υψηλής ταχύτητας 40m/min με υδραυλικό ανακυκλωτή και ανακυκλωτή

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86-317-2016816

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

2025 High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Product Specifications

Attribute	Value
Product Name	Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler
Cutting Material	Galvalume, Galvanized, PPGI, Aluminum
Material Thickness	0.3 mm - 3 mm
Working Speed	8 m/min - 30 m/min (can be customized)
Coil Weight	5 tons / 7 tons / 10 tons (can be customized)
Slitting Pcs	2 - 30 pcs
Machine Weight	13000 KG
Cutting Width Precision	± 0.01 - ± 0.05 mm

Product Description

The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.

Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.

Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.

Main Technical Specifications

No.	Item	Description
1	Main Specification	Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa Raw Material Thickness: 0.3 mm - 3.0 mm Raw Material Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Tape Outer Diameter: φ 1600 mm Coil Weight: 5 tons - 10 tons Slitting No.: Max 30 pcs The Highest Slitting Line Speed: 8 m/min - 30 m/min Minimum Cutting Line Width: 35 mm Cutting Width Precision: ± 0.01 - ± 0.05 mm Rated Operational Voltage: 240 V, 3 Phase, 60 Hz Total Weight: 13000 KG Working Space (LW): 20000 mm6000 mm

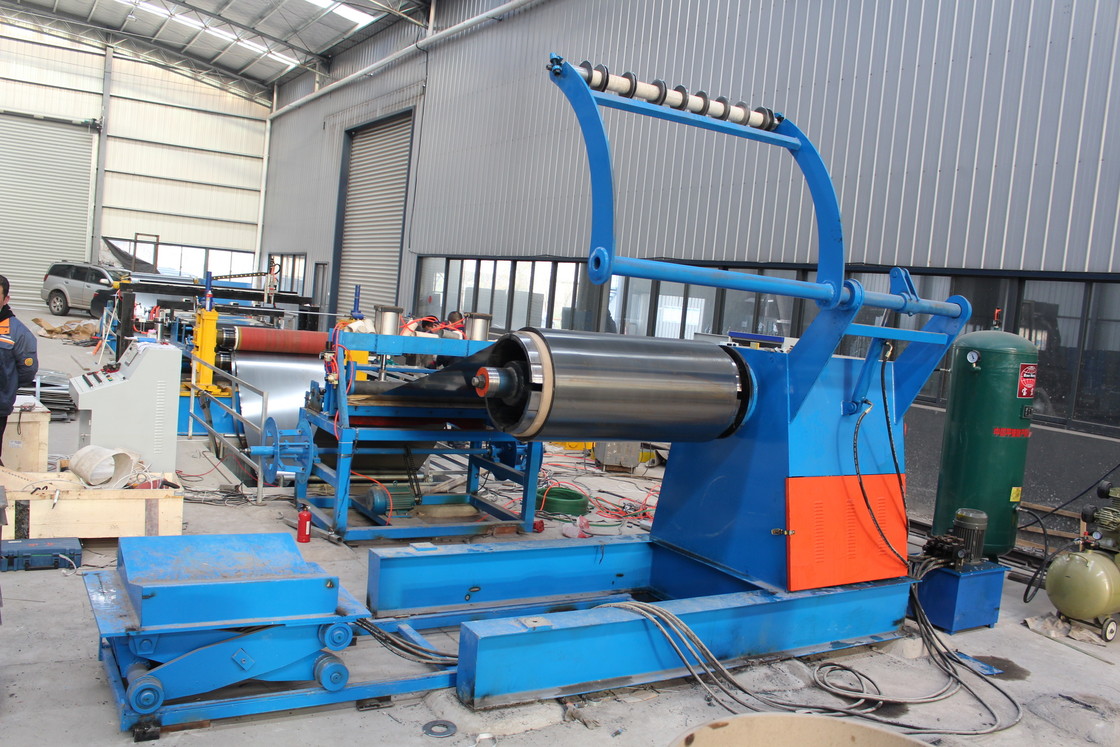

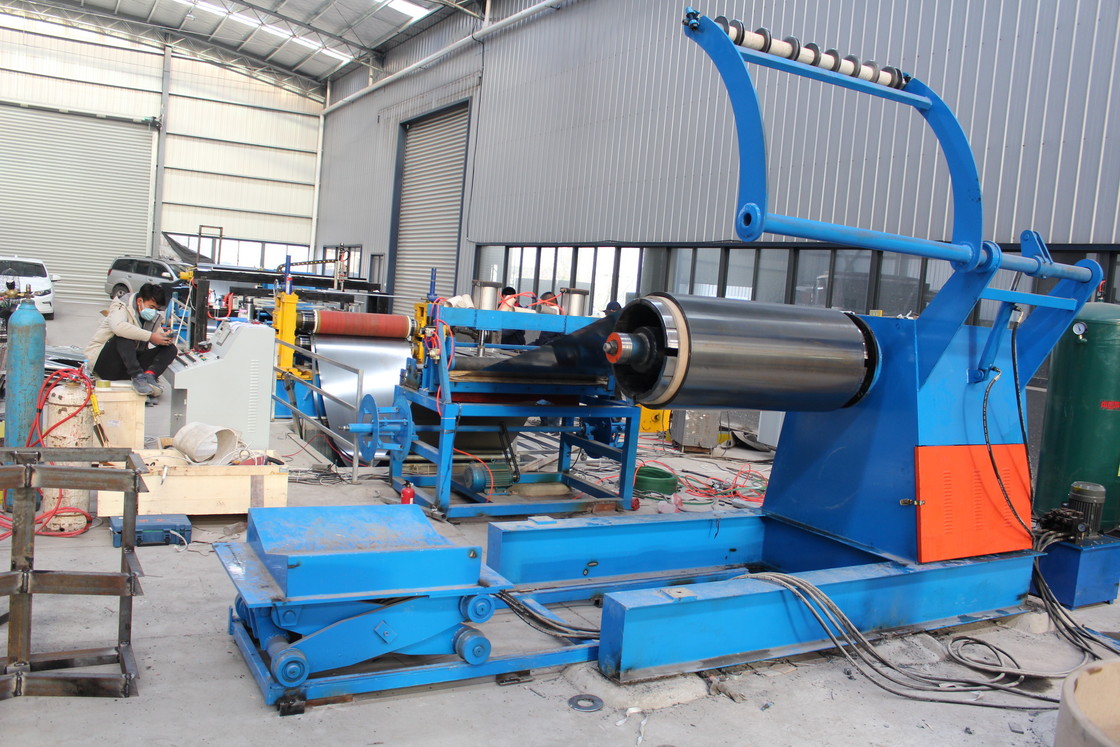

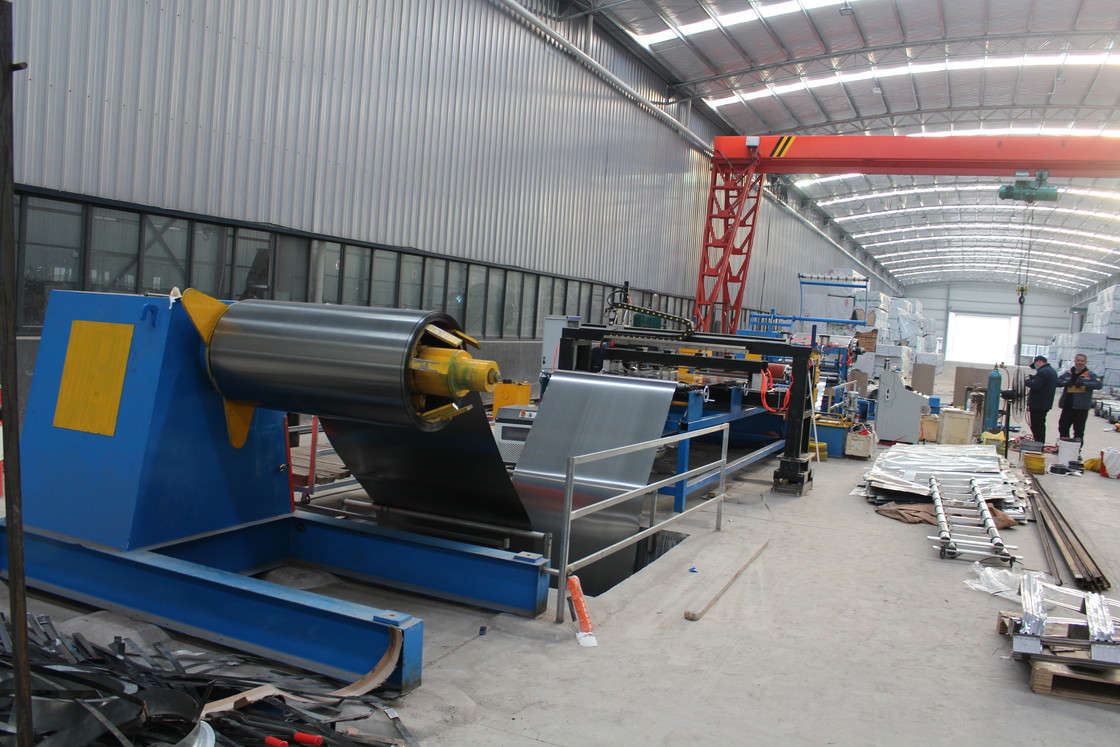

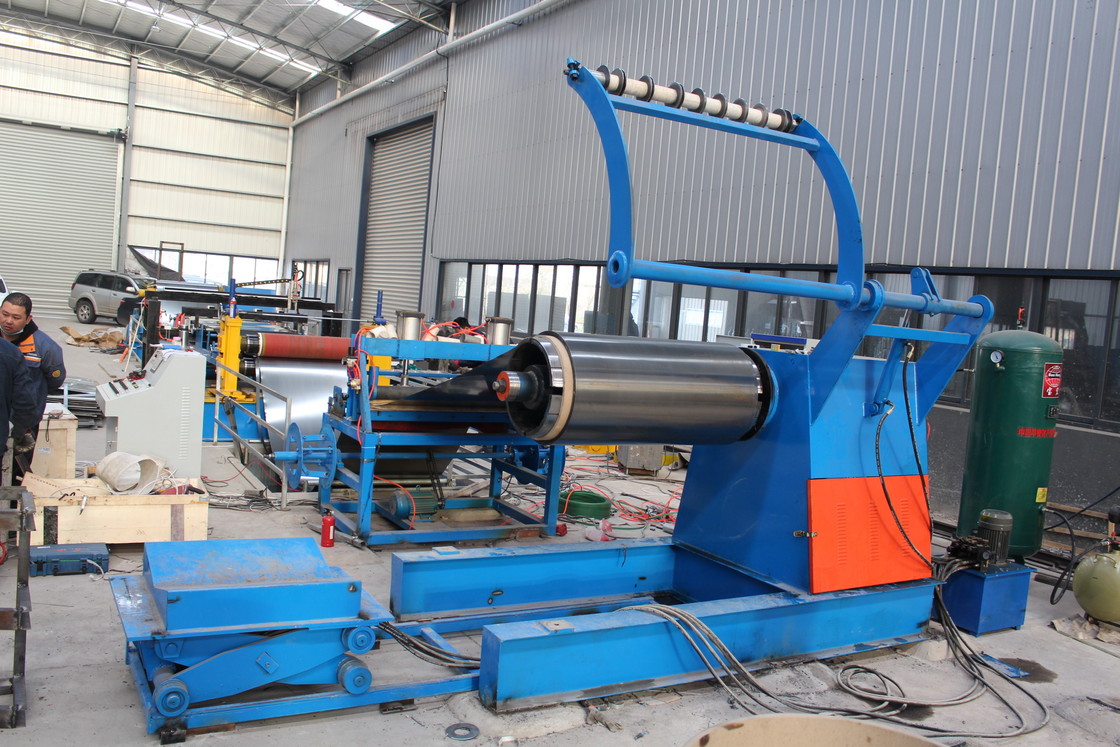

2	Decoiler Machine Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 tons - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 480 mm - φ 530 mm Shaft Diameter: φ180 mm Roller Effective Length: 1600 mm Drive Motor Power: 5.5 KW Loading Car Diameter: φ 700 mm - φ 1500 mm Loading Car Weight: 5 tons - 10 tons Car Speed: About 4 m/min

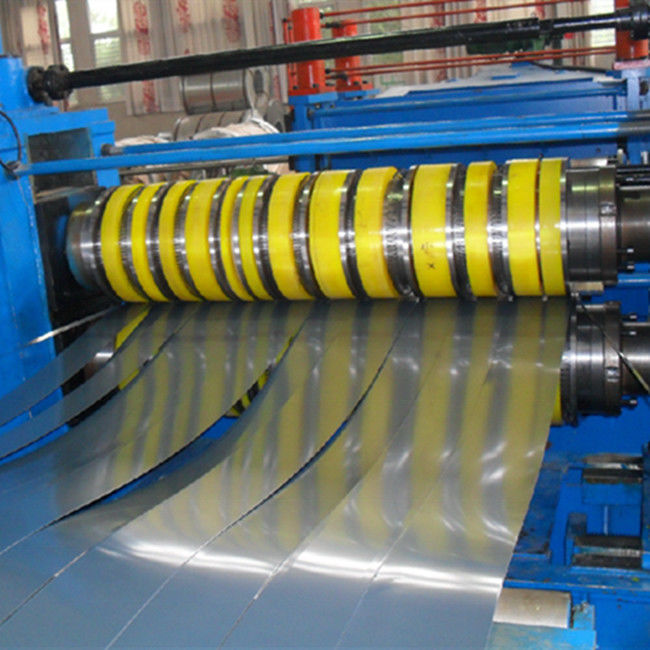

4	Slitting Machine Specification	Cutting Width: Max φ 1600 mm Cutting Thickness: 0.3 mm - 2.0 mm Cutter Shaft Diameter: φ180 mm Cutter Shaft Material: Cr 40 Cutter Size: 200 mm300 mm15 mm Cutter Material: Cr12MoV Cutter Spacer Size: 180 mm240 mm15 mm Drive Motor: 15 kw Cutting No.: 2-30 pcs Cutter No.: Max 32 pcs
7	Recoiler Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 485 mm - φ 530 mm Shaft Diameter: φ 180 mm Roller Effective Length: 1750 mm Drive Motor Power: 30 kw Loading Car Diameter: φ 1000 mm - φ 1750 mm Loading Car Weight: Max 10 tons Car Speed: About 4 m/min
9	Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10	Edge Collecting Machine	Drive Motor: 3 kw Collecting Material Width: Max 20 mm Double Edge Width: 400 mm

Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
Repairs will not be performed even during the guarantee period in the follow circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
